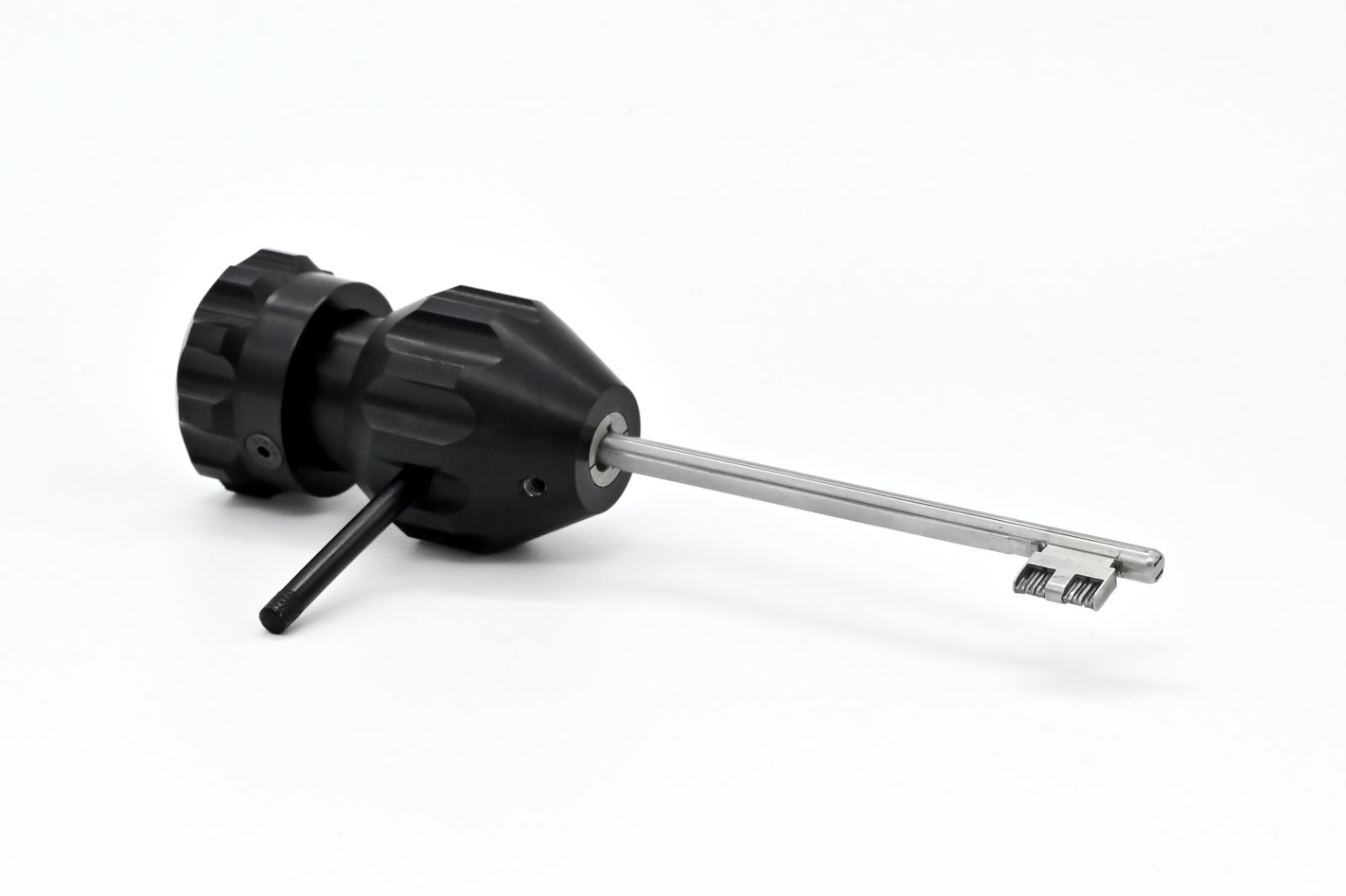

The Quick Tool Ivaylov CISA 3×3 is a specialized professional mechanical decoder developed for compatible CISA 3×3 double-bit lever lock systems.
The tool is designed according to the specific internal geometry, dimensions and lever arrangement of the corresponding CISA locking mechanism.
Its working section incorporates a 3×3 decoding configuration, consisting of two groups of three independently moving decoding pins – 6 working pins in total.
This arrangement corresponds to the two working sides of the compatible double-bit lever mechanism and allows the individual decoding elements to interact mechanically with the corresponding internal lever positions.
The Quick Tool Ivaylov CISA 3×3 operates entirely mechanically through a combination of controlled tension, progressive mechanical movement and tactile feedback. No batteries, electronic components or external power supply are required.
The working section of the Quick Tool Ivaylov CISA 3×3 incorporates two decoding groups, each containing three independently moving decoding pins.
The complete configuration consists of:
2 decoding groups
3 decoding pins per group
6 independently moving decoding pins in total
3×3 double-bit decoding configuration
Each group corresponds to one working side of the compatible double-bit locking mechanism.
The individual decoding pins move independently according to their mechanical interaction with the corresponding internal positions of the lock.
Controlled movement of the operating mechanism is transferred to the decoding assembly, allowing the individual elements to progressively establish positions corresponding to the internal configuration of the compatible CISA mechanism.
The system is entirely mechanical and provides direct tactile feedback to the operator.
A defining characteristic of the Quick Tool Ivaylov CISA 3×3 is its sensitive 3×3 mechanical decoding system.
The working arrangement consists of:
3 decoding pins on the first working side
3 decoding pins on the second working side
6 independently moving decoding pins in total
The two groups correspond to the two working sides of the compatible double-bit mechanism.
Each decoding element operates independently and responds mechanically to its corresponding internal position.
The system relies on precision, sensitivity and controlled mechanical tension rather than excessive force.
Changes in resistance are transmitted through the decoder, providing tactile feedback to the professional operator throughout the procedure.
The Quick Tool Ivaylov CISA 3×3 is designed to retain the positions established by its individual decoding elements during the decoding process.
Following a successful decoding procedure, the resulting 3×3 position configuration can be inspected and recorded.
Where appropriate and legally permitted, the obtained information may assist a professional locksmith in determining the corresponding double-bit key configuration or preparing a replacement key.
After the decoding information has been recorded, the mechanism can be returned to its initial configuration using the supplied reset tool, preparing the decoder for subsequent professional use.
The Quick Tool Ivaylov CISA 3×3 is specifically developed for:
CISA 3×3 double-bit lever locks
compatible CISA mechanisms using the corresponding 3×3 configuration
The tool has been developed around the specific 3×3 architecture and internal dimensions of the compatible CISA locking system.
Correct identification of the lock is essential before operation.
The presence of a 3×3 configuration alone does not automatically guarantee compatibility with another CISA or double-bit lock. Internal dimensions, lever spacing, working depth, blade geometry and key dimensions must also correspond to the configuration supported by the decoder.
The Quick Tool Ivaylov CISA 3×3 should be considered a model-specific professional decoder, rather than a universal decoder for all CISA locking systems.
Different CISA lock families and generations may incorporate:
different lever configurations;
different internal dimensions;
different spacing between working positions;
different key and blade geometry;
additional security components;
anti-picking or blocking systems.
For this reason, the exact lock configuration should always be identified before selecting the decoder.
The CISA 3×3 and CISA 3×5×3 configurations are different mechanical systems and should be treated as separate decoder models.
Correct dimensional compatibility is essential for reliable professional operation.
Important parameters include:
number and arrangement of lever positions;
spacing between individual working positions;
internal dimensions of the lock;
working depth;
blade dimensions;
key geometry;
configuration of the locking mechanism;
presence of additional security elements.
Locks with similar external appearance or similar key profiles may use substantially different internal geometry.
Compatibility should therefore be determined according to the actual mechanical configuration of the lock.
The Quick Tool Ivaylov CISA 3×3 is manually operated through a combination of controlled mechanical tension, progressive movement and tactile feedback.
The two groups of three decoding elements interact mechanically with the corresponding internal positions of the compatible CISA double-bit lever mechanism.
During operation, changes in mechanical resistance are transmitted through the tool, providing direct tactile feedback to the operator.
Correct operation relies on precision, sensitivity and controlled handling rather than excessive force.
The mechanism is completely mechanical and requires no electronic assistance or external power source.
The Quick Tool Ivaylov CISA 3×3 is designed for controlled mechanical interaction with compatible locking mechanisms without requiring destructive modification as part of its normal professional operation.
When the correct decoder is used with the corresponding compatible CISA lock and handled properly, the normal decoding process does not require drilling, cutting or permanent modification of the locking mechanism.
This makes the tool suitable for professional locksmith applications where preservation of the original lock is important.
The Quick Tool Ivaylov CISA 3×3 is intended for professional locksmith applications involving compatible CISA double-bit lever locking systems.
Depending on the specific lock configuration and installation, compatible mechanisms may be used in:
security doors;
residential locking systems;
commercial security installations;
secure storage systems;
specialized security equipment;
other installations incorporating a compatible CISA 3×3 mechanism.
Actual compatibility should always be verified according to the specific lock version.
The complete Quick Tool Ivaylov CISA 3×3 kit may include:
Quick Tool Ivaylov CISA 3×3 decoder
Reset tool
Spare/service decoding pins
Tension/operating handles
Reading aid
Protective transportation box
The exact contents may vary depending on the supplied product configuration.
| Specification | Details |
|---|---|
| Tool Type | Professional mechanical decoder |
| Model | Quick Tool Ivaylov CISA 3×3 |
| Compatible Lock | CISA 3×3 |
| Lock Type | Double-bit lever lock |
| Decoding Configuration | 3×3 |
| First Working Side | 3 decoding pins |
| Second Working Side | 3 decoding pins |
| Total Decoding Pins | 6 |
| Pin Operation | Independent mechanical movement |
| Operating Principle | Mechanical decoding with controlled tension |
| Operation | Manual |
| Sensitive Mechanism | Yes |
| Mechanical Feedback | Yes |
| Decoding Capability | Yes |
| Reset Capability | Yes |
| External Power Required | No |
| Application | Professional locksmith use |
| Tool Weight | 113 g |
| Box Weight | 111 g |
The Quick Tool Ivaylov CISA 3×3 is a precision professional locksmith instrument intended for trained locksmiths and other authorized specialists.
Correct operation requires knowledge of double-bit lever locking mechanisms, accurate identification of the corresponding CISA lock and appropriate handling of precision mechanical decoding equipment.
The tool should not be forced into locking mechanisms with incompatible dimensions, different internal geometry or unsupported security configurations.
It must only be used on locking systems for which the operator has lawful authorization to perform locksmith work, servicing, maintenance, testing or opening.
The Quick Tool Ivaylov CISA 3×3 has been developed specifically for the corresponding compatible CISA 3×3 locking configuration.
The designation 3×3 should not be interpreted as universal compatibility with every CISA or double-bit lever lock.
Correct identification of the lock and verification of its mechanical and dimensional compatibility are essential before professional use.
