Price:
1000.00 €
Excl.Tax (20%)
Available:
The Quick Tool Ivaylov Arcas Soler en Barcelona 7 Long Version is a specialized professional mechanical decoder developed for compatible Arcas Soler en Barcelona 7-lever double-bit lock systems.
This Long Version is designed according to the specific dimensions and internal geometry of the corresponding Arcas Soler locking mechanism. Locks of this type are commonly found in safes, security cabinets and other high-security applications, although their use is not limited exclusively to these installations.

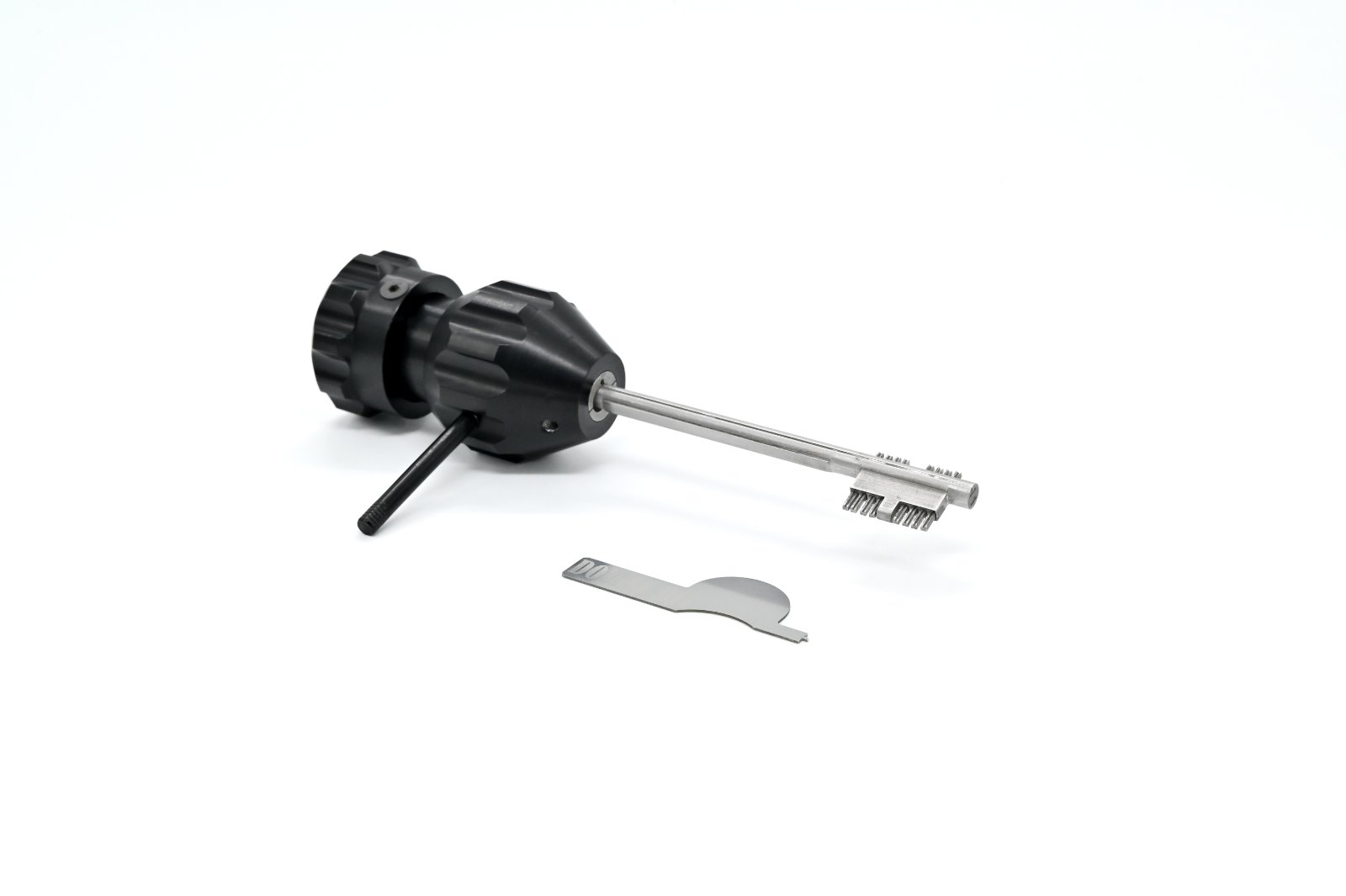

The tool combines a precisely manufactured working blade, a single decoding cassette with seven independently moving decoding elements, and a sensitive mechanical operating system. This configuration allows the decoder to interact progressively with the seven internal lever positions of a compatible lock.
Its operating principle is based on controlled mechanical tension, progressive movement and tactile feedback rather than excessive force.
Unlike decoder configurations using two separate working cassettes, the Arcas Soler 7 Long Version incorporates a single cassette containing seven individual decoding elements.
Each decoding element is able to move independently according to the mechanical interaction occurring inside the lock.
The cassette is mechanically connected to the operating section of the decoder. Controlled movement of the operating mechanism transfers movement through the internal assembly to the cassette and its decoding elements.
During this process, the individual elements interact with the corresponding levers of the lock and progressively establish their required positions.
The elongated working geometry of the Long Version is specifically intended for compatible lock configurations requiring the corresponding extended dimensions.
The decoder incorporates seven individual working positions, corresponding to the seven-lever configuration of the compatible Arcas Soler mechanism.
During operation, each decoding element interacts independently with its corresponding internal lever.
As controlled tension and mechanical movement are applied, the elements progressively respond to the internal geometry of the lock. The resulting positions represent the mechanical configuration required by the corresponding locking mechanism.
Once the necessary lever positions have been established, the bolt mechanism can permit operation of the lock.
In addition to operating a compatible locking mechanism, the Quick Tool Ivaylov Arcas Soler 7 Long Version is designed to preserve the positions reached by its decoding elements.
Following a successful decoding procedure, the seven resulting positions can be inspected and recorded.
Where appropriate and legally permitted, these values may assist a professional locksmith in determining the corresponding key configuration or preparing a replacement key.
After the obtained values have been read, the decoder can be returned to its starting configuration using the supplied reset tool.
The Quick Tool Ivaylov Arcas Soler en Barcelona 7 Long Version is specifically intended for:
Compatibility must always be verified before operation.
The number of levers alone is not sufficient to determine compatibility. Other important parameters include the spacing between the individual levers, working depth, blade dimensions, key geometry and overall internal construction of the lock.
For this reason, the tool should be considered a model-specific professional decoder, rather than a universal instrument for all seven-lever or double-bit locks.
Operation is based on a combination of controlled tension, progressive mechanical movement and tactile feedback.
The decoder is first correctly positioned in the compatible lock mechanism. The operator then applies controlled tension through the operating section of the tool.
Progressive movement of the mechanism allows the seven decoding elements to interact individually with the corresponding internal levers.
Throughout the procedure, the operator monitors changes in resistance and mechanical feedback transmitted through the tool.
When the decoding elements have reached the required positions, the internal lever configuration permits movement of the locking bolt.
The procedure should be carried out smoothly and progressively. Excessive rotational, axial or lateral force is neither required nor recommended.
The Quick Tool Ivaylov Arcas Soler 7 Long Version is designed for controlled mechanical interaction with a compatible lock without requiring destructive modification as part of its normal operating procedure.
When the correct decoder is used on the corresponding lock configuration and operated correctly, drilling, cutting or other destructive opening methods are not required for the normal decoding process.
Correct lock identification, proper positioning of the tool and controlled operation remain essential.
Due to the characteristics of the corresponding locking system, this decoder is particularly suitable for professional work involving compatible locks installed in:
The actual application may vary depending on the specific lock version and installation.
The complete kit may include:
The exact contents may vary depending on the supplied product configuration.
| Specification | Details |
|---|---|
| Tool Type | Professional mechanical decoder |
| Compatible Lock | Arcas Soler en Barcelona 7 Long Version |
| Lock Type | Double-bit lever lock |
| Typical Application | Safe and security locking systems |
| Lever Configuration | 7 positions |
| Decoding Arrangement | Single cassette |
| Decoding Elements | 7 independently moving elements |
| Version | Long Version |
| Operating Principle | Mechanical decoding with controlled tension |
| Operation | Manual |
| Mechanical Feedback | Yes |
| Decoding Capability | Yes |
| Reset Capability | Yes |
| External Power Required | No |
| Application | Professional locksmith use |
| Tool Weight | 113 g |
| Box Weight | 111 g |
The Quick Tool Ivaylov Arcas Soler en Barcelona 7 Long Version is a specialized professional locksmith instrument.
Correct operation requires an understanding of double-bit lever locking systems and the ability to identify the corresponding lock configuration before inserting or operating the decoder.
The tool must not be forced into locks with incompatible dimensions or different internal geometry.
It should only be used by trained locksmiths or other authorized professionals on locking systems for which they have lawful authorization to perform opening, servicing, maintenance, testing or related locksmith work.
This decoder has been developed for a specific family of locking mechanisms. It should not be regarded as a universal solution for every double-bit lever lock.
Before use, the operator should verify the exact lock model, internal configuration and dimensional compatibility.
Correct tool selection is essential for reliable operation and for reducing the risk of damage to either the decoder or the locking mechanism.
Arcas Soler, Arcas Soler en Barcelona, and any other third-party brand names or product designations mentioned in this description are used solely for the purpose of identifying compatible locking systems.
All trademarks, registered trademarks and product names remain the property of their respective owners.
Quick Tool Ivaylov is an independent product. Reference to Arcas Soler or any other third-party manufacturer does not imply sponsorship, authorization, affiliation, partnership or endorsement by the respective manufacturer.
