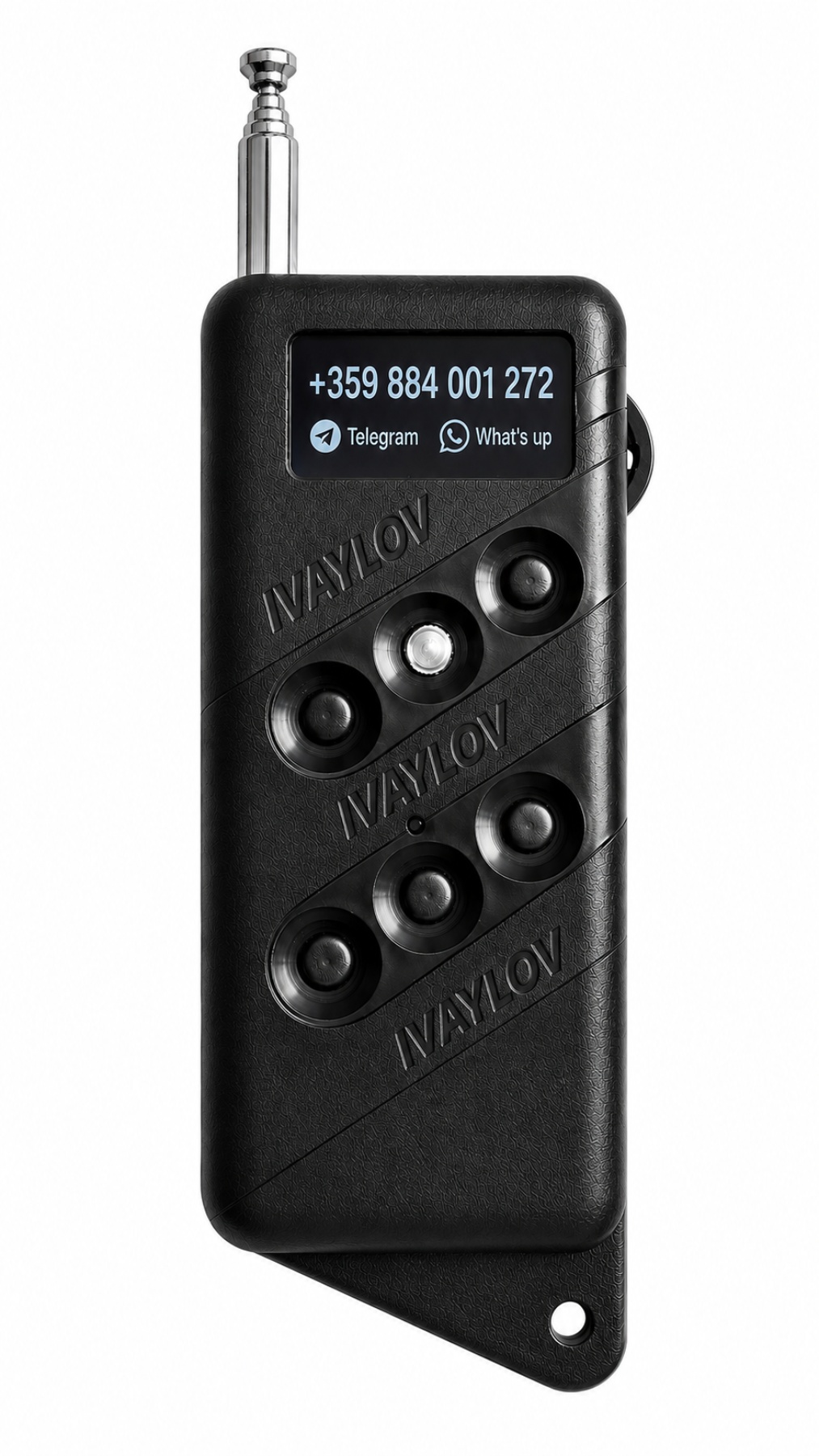

IVAYLOV ARGO V4.12

Professional Multi-Frequency Remote & RFID Tool for Gates, Barriers and Automation Systems

IVAYLOV ARGO V4.12 is a compact professional device designed for working with compatible radio-controlled automation systems, including gates, garage doors, barriers, shutters and access-control equipment.

The unit combines RF signal management, programmable memory and 125 kHz RFID functionality in one portable platform. Its integrated display and joystick-based navigation provide quick access to stored profiles, operating modes and device settings.

MAIN FEATURES

• Firmware version: V4.12

• Multi-frequency RF operation

• Support for fixed and compatible dynamic-code systems

• Integrated 125 kHz RFID module

• Reading and writing of supported RFID tags

• Up to 99 memory positions

• LCD information display

• Telescopic metal antenna

• Built-in rechargeable battery

• USB Type-C charging

• Adjustable operating frequency

• Russian / English interface

• User-configurable PIN protection

• Firmware update capability

RADIO FREQUENCY SUPPORT

ARGO V4.12 is designed to operate across several commonly used automation frequency bands.

Frequently used frequencies include:

• 315 MHz

• 433.42 MHz

• 433.92 MHz

• 434.4 MHz

• 868 MHz

The device also provides manual frequency configuration within its supported RF range, making it suitable for working with automation equipment outside the most commonly used presets.

MEMORY SYSTEM

The integrated memory allows multiple compatible remote-control profiles to be stored directly on the device.

Depending on configuration, up to 99 stored entries can be available.

Saved entries can be individually identified, making it easier for technicians to organize different gates, barriers, garage systems and other installations without carrying a large number of separate remotes.

LCD DISPLAY & CONTROLS

The built-in display provides access to:

• stored profiles

• RF parameters

• operating modes

• system settings

• memory management

• device information

Navigation is performed through physical control buttons together with a joystick-style control, allowing fast movement through menus and configuration options.

TELESCOPIC ANTENNA

ARGO V4.12 uses an integrated retractable metal antenna.

When stored, the antenna keeps the unit compact and easy to carry. When extended, it improves RF reception and transmission performance for supported applications.

125 kHz RFID FUNCTIONALITY

The integrated RFID module supports compatible 125 kHz access cards and tags.

Supported functionality includes reading and working with compatible RFID identifiers as well as writing supported data to compatible rewritable blanks.

Compatible blank types may include:

• EM4305

• T5577

Support depends on the RFID technology and encoding used by the original credential.

COMPATIBLE AUTOMATION SYSTEMS

ARGO V4.12 supports a broad selection of gate, barrier and garage automation manufacturers.

Examples include:

CAME

• TAM 432

• TOP 432 / 434

• TOP 432 / 434 EE

• ATOMO AT01 / AT02 / AT04

• TOP 862NA

NICE

• FLO series

• FLOR-S series

• Very VE

• Very VR

• Smilo

• Era Flor

• Era Inti

• Era One

BFT

• MITTO 2 / 4

• MITTO 2N / 4N

FAAC

• XT4 433RC

• TM1 / TM2 / TM3-DS

• selected 868SLH systems

DITEC

• GOL4

• GOL4C

• BIXLS2

BENINCA

• T4WV

• CUPIDO 4

• TO GO series

ALLMATIC

• B.RO OVER

• B.RO STAR

• B.RO WN

• TECH 3

MARANTEC

• D222 / D224 / D214

• Digital 302 / 313 / 304

Additional compatibility includes selected systems from:

• DoorHan

• DEA

• GENIUS

• DTM

• AN-MOTORS

• ROGER

• GSN

• ELMES

• APRIMATIC

• NOVOFERM

• NORMSTAHL / CRAWFORD

• COMUNELLO

• KING GATES

• MOOVO

• BYTEC / BAISHENG

• CLEMSA

• HÖRMANN

• SOMFY

• NERO

Because many fixed-code systems use related protocols and encoding technologies, compatibility is not necessarily limited to the models listed above.

PROFESSIONAL APPLICATION

IVAYLOV ARGO V4.12 is intended for legitimate professional work involving authorized access-control and automation equipment.

Typical applications include:

• installation and servicing of gates and barriers

• garage-door automation maintenance

• access-control servicing

• remote-control replacement and configuration

• RF diagnostics

• management of compatible 125 kHz RFID credentials

POWER & PORTABILITY

The device uses an integrated rechargeable battery and supports USB Type-C charging.

Its compact enclosure, integrated controls and retractable antenna make it suitable for everyday field use by installers and service technicians.

---

IVAYLOV

Professional tools for access-control and automation specialists

Phone / WhatsApp / Telegram:
+359 884 001 272

Use only on systems and equipment that you own or are explicitly authorized to service, test or configure.
